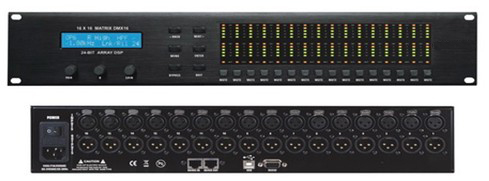

INOUT 16X16MATRIX 16进16出数字音频处理器

技术参数：

■28-bit DSP Processing in Parallel Dynamic range:102dB、48KHz sampling rate
■Matrix Routing,Baiance input/output control
■5 bands PEQ per channel、all Parameters Adjustable
■Crossover slope:6.12.18.24 and 48dBper octave Filters
Type:Butterworth,Bossol,Linkwitz-Riley
■Up to 1364ms/per Channel,o.1 ms Step
■Independent Compressor and Limitor per Channel,All Parameters Adjustable
■Revers Polarity Control on Each Channel,Digital Noise-gate
■Network connection port:RS232,RS485 and USB Port
■16 user memories
■16x5 bands(DMX8),32x5 bands(DMx16) DIGITAL LEVEL Meter
■2x20 character LCD with backlight
